    EPS Sandwich Panel Production Line

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SWL151222-98
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 25 SETS/ MONTH
    Delivery Time : 40 days after payment
    • Product Details
    • Company Profile

    EPS Sandwich Panel Production Line

    28 KW EPS Sandwich Panel Roll Forming and Pressing Machine With 35 m Length


    Introduction


    Expandable Polystyrene Sandwich Panel Machine mainly consists of a roll forming machine and a sandwich panel laminating system. Through this line, corrugated sandwich panels can be produced directly, without the shortcoming that traditional corrugated sandwich panels have to be laminated manually after the forming of corrugated sheet. Moreover, both the roll forming machine and the laminating system can work independently. The roll forming machine of the line consists of feeding system, roll forming system and cutting system, while the lamin ating system is made up of such equipments as uncoiler, feeding, squeezing, gelatinizing, heating, laminating, edge rolling, edge turn-over, groove-making, edge pruning,
    pneumatic device, automatic cutting and PLC. The whole machine possesses advanced working crafts, merging mechanical and electrical equipments into an organic whole. Annual production of this line (eight ours a day) is about 600,000 square meters.


    Technical specification


    EPS sandwich panel machine mainly consists of uncoiler, roll forming machine, laminating system, cutting device, electric control system, and pneumatic system.

    1. EPS sandwich panel spec
    Panel thickness:
    Mini thickness 50mm (wall panel)
    Max. Thickness 150mm(exclude corrugated sandwich panel)

    2. Steel sheet spec
    Thickness 0.4-0.7mm color steel sheet
    Width 1250mm (we can design according to buyer`s requirement)
    Max. Coil weight: 5 tons
    Inner dia. Of coil: 508mm

    3. Whole line spec
    Whole line dimension: About 35000mm × 2500mm × 3000mm
    Total weight about: 20t
    Working speed: About 3-5m/min (adjustable)
    The output: 1500m2-2000m2/8hour
    Control mode: PLC and converter
    Total power: About 28kw (as per final designing)
    Power required: 380v/3phase/50Hz or as per customer's requirement.
    Air pressure: 0.7mpa (for buyer to prepare)
    Suitable working temperature: About 25 degree



    Sandwich Panel Spec
    Panel width950mm, 1150mm (according to profile requirement)
    Panel thicknessMini thickness:
    50mm (corrugated sandwich panel)
    50mm (wall panel)
    Max. thickness:
    150mm (exclude corrugated sandwich panel)

    Steel Sheet Spec (we can design as per buyer's special requirement )
    Thickness0.4-0.7mm color steel sheet
    Width1250mm, 1000mm
    Max. coil weight5tons
    Inner Dia. of coil508mm

    Whole Line Spec
    Working speed3- 5m/min (adjustable)
    Total lengthabout 35m
    Control modeMisubishi PLC
    Total powerabout 28Kw (as per final designing)
    Power required380V/3phase/50Hz or as per customers requirement

    Components
    Decoiler
    Roll forming machine
    consecutive laminating body
    cutting device
    electric control system
    heater
    pneumatic system

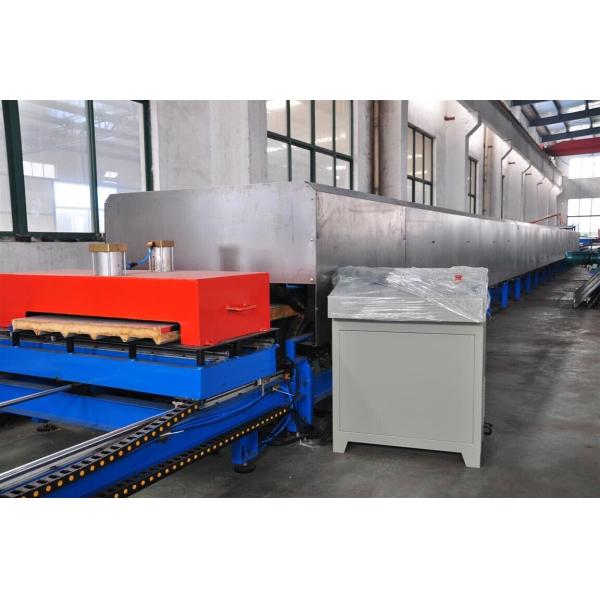

    Machinery Photos




    "Send" below get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
