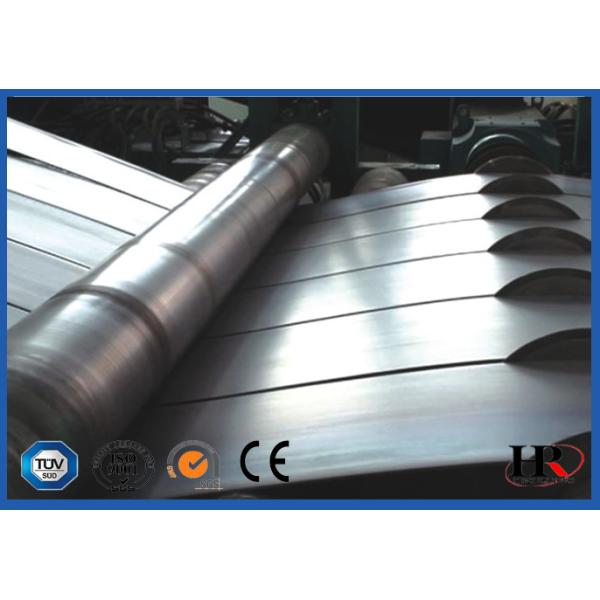

    1.5mm Galvanized Steel Roll Form Equipment With Gcr 15 Roller

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SBO15006
    Certification : CE ISO SGS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10 sets/month
    Delivery Time : 45Days
    • Product Details
    • Company Profile

    1.5mm Galvanized Steel Roll Form Equipment With Gcr 15 Roller

    1.5mm Galvanized Steel Roll Form Equipment With Gcr 15 Roller


    Product Details

    Model NO.:SBO15006

    Certification:CE, ISO, ISO9001: 2000
    Condition:New

    Customized:Customized
    Usage:Wall

    Transmission Method:Hydraulic Pressure
    Type:Concrete Iron Strengthen Machinery

    Making Machine:Multifunctional
    Material of Roller:Gcr 15

    Control System:PLC Control System
    Export Markets:Global

    Additional Info.

    Packing:Container Packing of The Line Sutiable for Oversea
    Origin:Jiangsu
    Production Capacity:10 Set/Sets / Month

    Product Description

    Forming craft
    De-coiler----Leveler/feeder----Continuous punching---Roll forming(welding)---Cutting-to-length---Collection
    Equipment structure
    This production line consist of de-coiler,leveler/feeder,Continuous punching,Roll forming,Cutting-to-length,Collection and electric control system,etc.
    1, Bottom Continuous punching
    Punching type:Four-column punching device
    Punching mould material:Cr12
    1, Roll Forming Machine
    Forming stations:26 stations
    Wall-frame structure or gantry type
    Max feeding width:220mm

    PRODUCT DESCRIPTION



    Material:


    Enclosure frame: Sheet steel, 1.5 mm
    Roof: Sheet steel, 1.5 mm
    Front frame: Extruded aluminium sections with die-cast corner pieces
    Rear door: Sheet steel, 2.0 mm
    Gland plates: Sheet steel, 1.5 mm
    Adaptor sections: Aluminium


    Surface finish:


    Enclosure frame: Dipcoat-primed
    Roof and rear door: Dipcoat primed, powder-coated on the outside,

    textured paint
    Front frame: Powder-coated
    Gland plates: Zinc-plated


    Colour:


    RAL 7035


    Supply includes:


    Enclosure frame
    Front frame

    (r/h hinge, opening angle 130, held on the left via mechanical snap fasteners)
    Rear door (r/h hinge, may be swapped to opposite side)
    Roof
    Adaptor sections, 482.6 mm (19") attachment level
    Gland plates
    2 TS punched rails 18 x 38 mm


    Packs of:


    1 pc(s).
