    High Speed Shutter Door Cold Roll Forming Machine with Computer Software PLC Control

    Ask Lasest Price
    Brand Name : Shenghong
    Model Number : SH16-07-11-06
    Certification : CE/ISO9001
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 30 SETS/ MONTH
    Delivery Time : 40 days after payment
    • Product Details
    • Company Profile

    High Speed Shutter Door Cold Roll Forming Machine with Computer Software PLC Control

    High Speed Shutter Door Cold Roll Forming Machine with Computer Software PLC Control

    Product Description

    1. Number of forming groups: 12groups


    2. The machine material: welding comprise of 12 square tube


    3. The wallboard: processing compose of 20mm steel plate


    4. The mold: The mold is made of Gcr12mov steel, processed after rough turning, finish turning, finish grinding,

    hard chrome plating to ensure that the mold no deformation, glabrous, wearable and accurate.


    5. The shaft: The shaft is made of 45#steel, diameter of 38mm, finish turning, finish grinding after heat

    treatment, quenching and high temperature tempering.


    6. The bearing: Harbin type 6207


    7. The roll material: 0.7-1.0mm color steel sheet, galvanized steel sheet, aluminium sheet, expansion

    material 125mm, ejection of compact effective area is 88-90mm.


    8. Motor: 4kw * 1 set (380v)


    9. Transmission: 1.0 inch chain


    10. Discharge rack: 1 set


    11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,

    the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.


    12. Machine Length: 4.0 m * 0.5 m * 0.8 m


    13. Machine Weight: 1.8 tons


    14. Production time: 20 days


    15. One year warranty

    Automatic tracking the knife:

    1) by PLC automatic control system


    2) motor power: 2.5 kw


    3) the use of imported high quality alloy blade, high quality and precision is lower

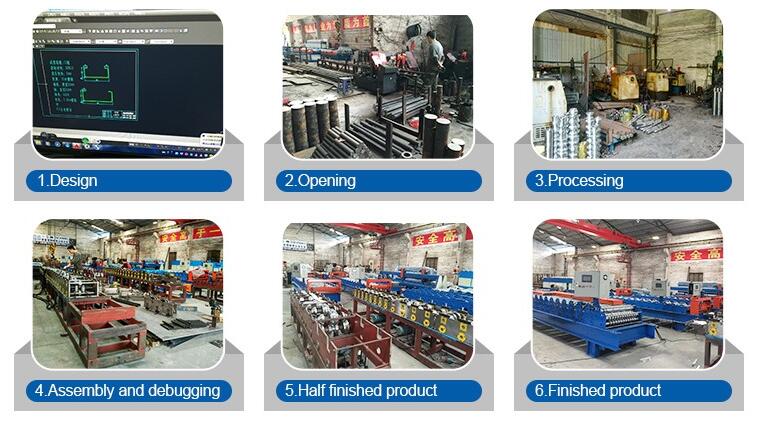

    Pic for your reference:


    Packaging & Shipping

    The CZ interchangeable purlin roll forming machine roll forming machine is packed by the plstic film and then load into the container to protect the CZ interchangeable purlin roll forming machine from being destroyed during the shipping.



    2016 new type c z interchangeable purlin roll forming machine cz forming machine
