Roller shutter door series roll forming machine

Roller shutter door series roll forming machine description

Our Roller shutter door frame roll forming machine used building material can produce Roller shutter door system, including Shutter door, Shutter Bottom, Shutters Box Series, Octagonal Pipe, PU Shutter Door, Guide, Track Rail, Windows Shutters Insulated Slat, Sectional Doors Panel, etc.

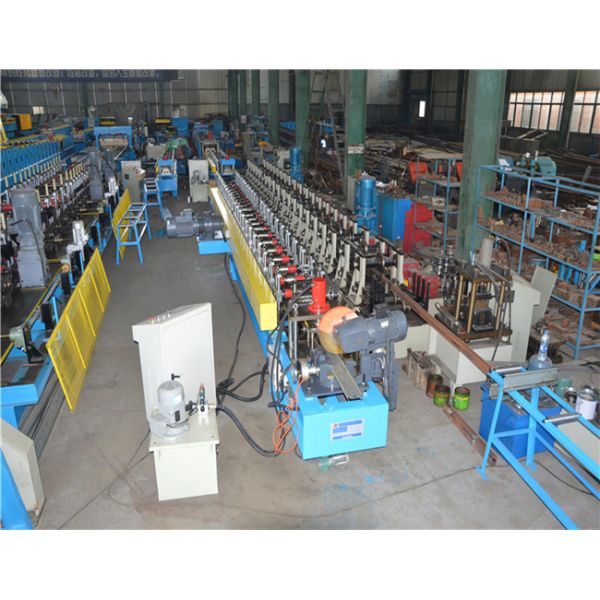

The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.

Roller Shutter Door Slats Product Descriptions

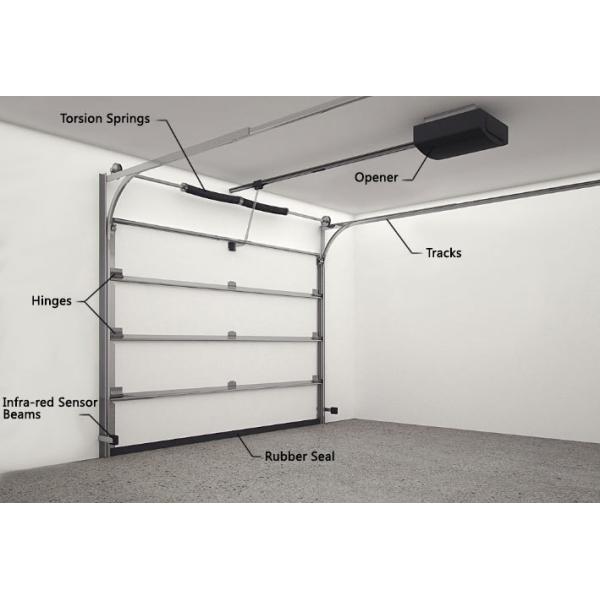

The shutter door is a door or window that consists of a number of horizontal bars (or sometimes strip or mesh systems) that are hinged together. On the door, the action may be maneuverable. It provides weather protection and protects windows from vandalism and burglary.
Rolling shutter doors have many applications, including vans, garages, kitchens, schools, prisons and warehouse doors. In some parts of the world, rolling shutters are subsidized by local governments due to inherent safety concerns. In areas that are frequently exposed to inclement weather, the rolling door is used as an insulation method and the window can be protected from hail damage.

Roller Shutter Door Slats Product Parameters

1. Materials to form shutter door: 0.6-1.0 mm galvanized coils,

2. Feeding width: 184mm

3. Forming steps: about 13 stations

4. Material of rollers: Cr40 steel precision-machined, high-frequency quenching HRC58-62

5. Material of main shaft : 45# high-quality steel (diameter＞￠50)

6. Chains’ material: 45# steel, high frequency quenching, circular pitch:38.1; number of teeth: 13

7. Cutting: hydraulic cutting; quenching HRC58-62

8. Electronic control: PLC control Panasonic Brand

9. Dimension of machine: 11500mmX650mmX800mm

10. Working speed:12-15m/min;

11. Drive system: chain drive

12. 5.5 KW main motor power

Roller Shutter Door Slats Main Components

1.Roller Shutter Door Slat Machine

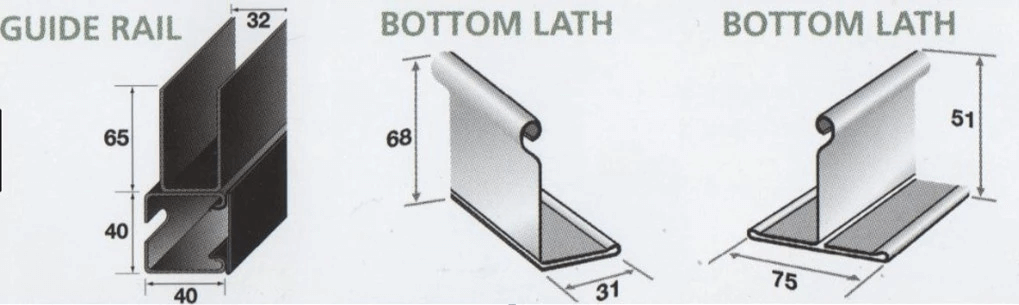

2.Roller Shutter Door Guide Rail Machine

3.Shutter Bottom Roll Forming Machine

4.Shutters Box Series Forming Machine

5.Octagonal Pipe Machine

6.PU Shutter Door Forming Machine

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
